Injection Molding

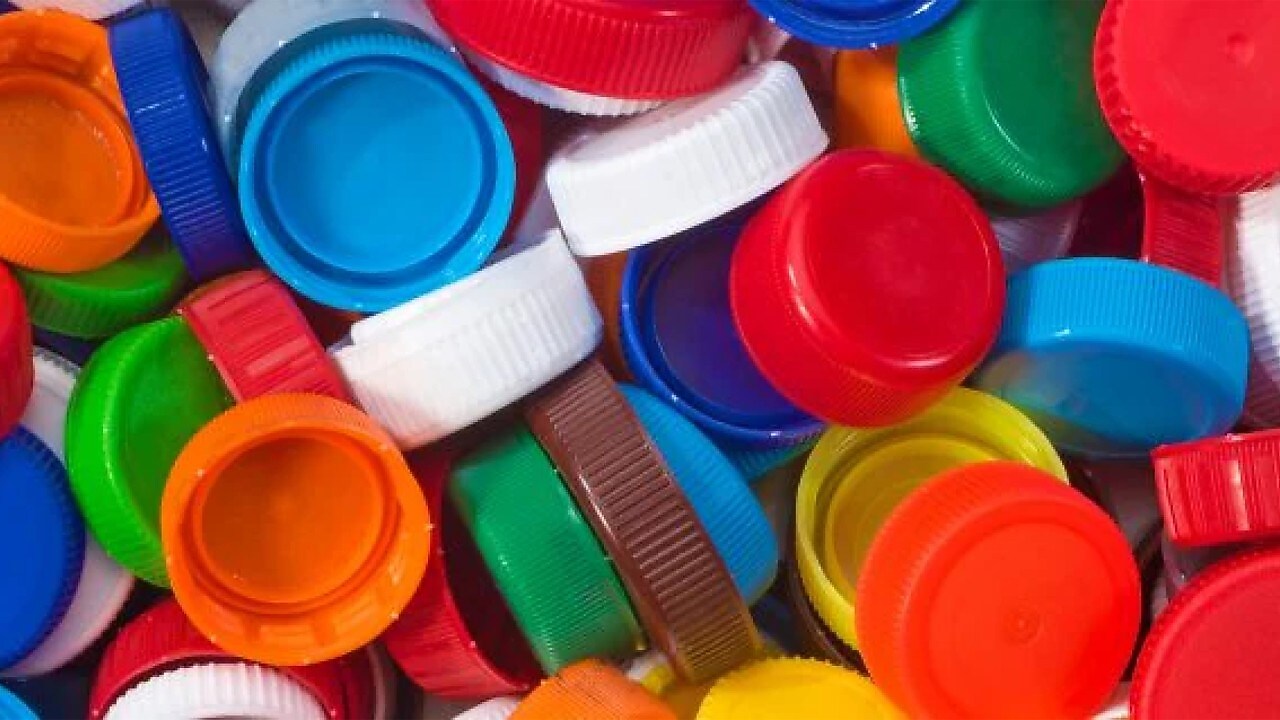

Producing caps and toys with tight tolerances and high-quality finishes requires running high-performing resin on converter lines. At Shell Polymers, we understand all too well how important the qualification process is to injection molders. One of our quality measures lies in the injection molding machines we use—which can measure the pressure in different mold parts to provide valuable insights that can help converters better understand our polymers’ performance before running our material on their equipment.

Shell Polymers Injection Molding product details

View LLDPE Product Bulletins

Product Melt Index (2.16 kg/190C)
ASTM D1238 (g/10min)
Density
ASTM D792 (g/cm3)
Document
Shell Polymers LLDPE 24N20 20.0 0.924 View Document (PDF, 3 MB)
Shell Polymers LLDPE 26N50 50.0 0.926 View Document (PDF, 3 MB)

View HDPE Product Bulletins

Product Melt Index (2.16 kg/190C)
ASTM D1238 (g/10min)
Density
ASTM D792 (g/cm3)
Document
Shell Polymers HDPE 48N5 5.0 0.948 View Document (PDF, 198 kB)
Shell Polymers HDPE 52N10 10.0 0.952 View Document (PDF, 198 kB)
Shell Polymers HDPE 52N7 6.5 0.952 View Document (PDF, 229 kB)
Shell Polymers HDPE 54N20 20.0 0.954 View Document (PDF, 243 kB)
Shell Polymers HDPE 65N8 8.2 0.965 View Document (PDF, 237 kB)
Shell Polymers HDPE 65N8U 8.2 0.965 View Document (PDF, 247 kB)

Grade Slate 101

Understanding how we name our grade slates will be key to choosing the right melt index and density you need. Check out our unique naming convention below to know exactly what to look for when perusing our product bulletins.

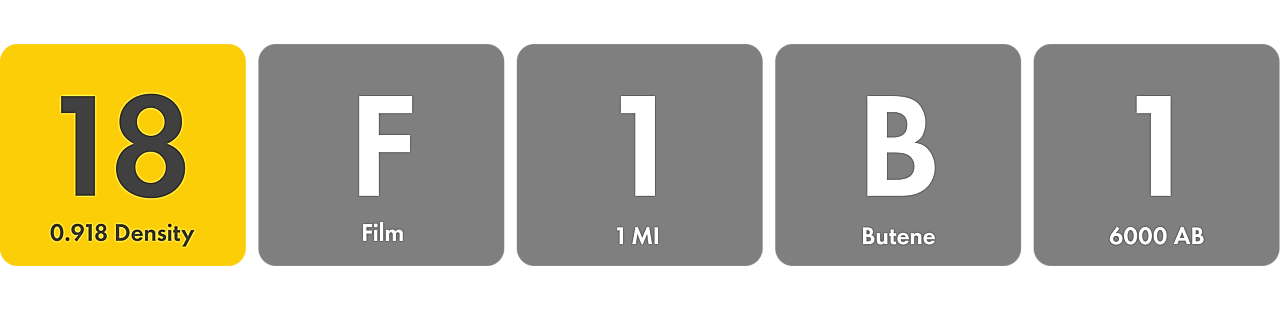

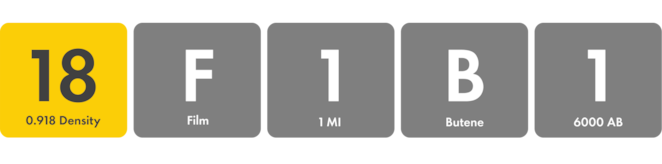

Graphic displaying “18F1B1.” “18” is highlighted in red.

Density is reflected by the first two numbers found in the nomenclature sequence, which in this instance is 18. These numbers represent the last two significant digits of the density value. See examples below.

18 = 0.918 density
53 = 0.953 density
63 = 0.963 density

Leveraging high-density polyethylene (HDPE) and linear low-density polyethylene (LLDPE) in applications makes durable products that can also be abrasion-and chemical-resistant. So when a part needs to be strong, versatile, and produced quickly, HDPE and LLDPE are strong contenders.



Injection molding is used in a number of markets ranging from Food & Beverage to Toys, and more.
